Servo drives

Compact servo drives

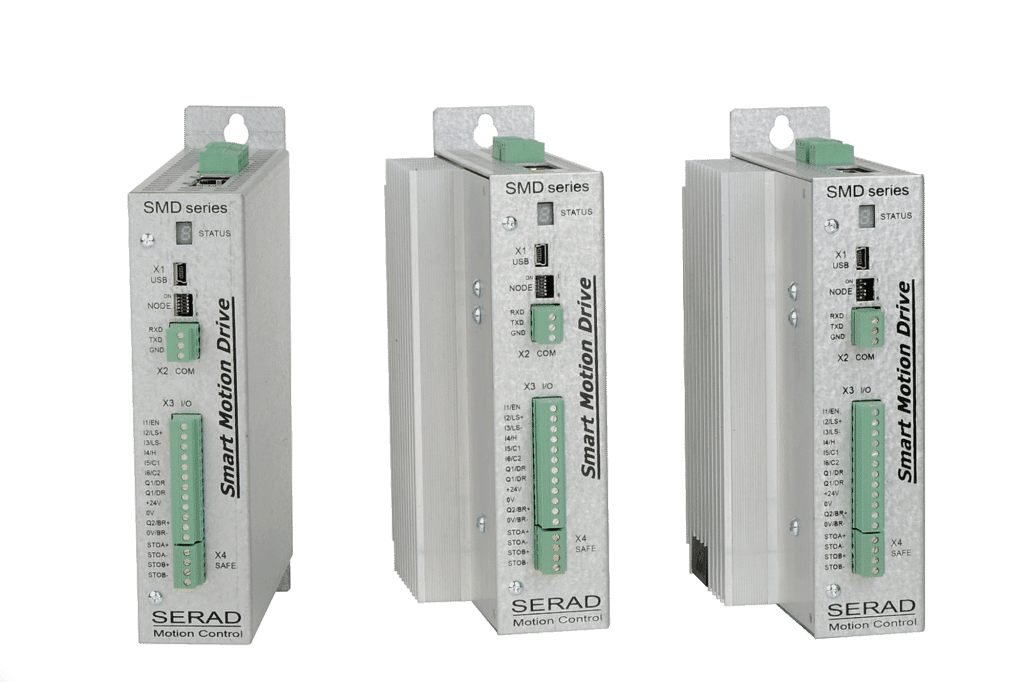

SMD series – Smart Motion Drive

SMD servo drives are especially suitable for high dynamics and high precision.
They integrate the power supply, the braking resistor, the mains filter and the safety function. Thanks to their integrated inputs/outputs and PLC functions, they are suitable for a wide variety of applications.
Industrial Ethernet communication busses provide networked configurations. The user-friendly Windows-based parameterization software offers functions for easy setup and diagnostics.
  • Up to 8.8 kW
  • Three-phase or single-phase power supply
  • Integrated network filter
  • Multi feedback
  • Safety function SIL3
  • Torque mode
  • Speed mode
  • Positioning mode
MOTION functions :
  • S-curve
  • Electric shaft
  • Cam profiles
  • Synchronization
  • Camboxes
  • Triggered movements
Communication :
  • EtherCAT
  • PROFINET
  • POWERLINK
  • EtherNet / IP
  • CANopen
  • Modbus TCP
Drive Studio software workshop :
The Drive Studio software tool makes it very easy to configure the SMD series drives from a PC with its graphical tool. The path generator and oscilloscope functions ensure fast and optimal implementation.
  • Multi-windowing
  • Tool Boxes
  • Autotuning
  • Graphical cam profile editor
  • Integrated help
SMD230 series
SMD400 series

Servo drives

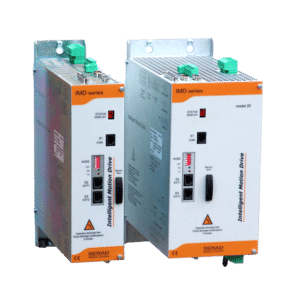

IMD series – Intelligent Motion Drive

IMD servo drives are especially suitable for high dynamics and high precision. They integrate the power supply, braking resistor, mains filter and safety function.
Thanks to their inputs/outputs and integrated PLC functions, they are suitable for a wide variety of applications.
Industrial Ethernet communication busses provide networked configurations. The user-friendly parameterization software offers functions for easy setup and diagnostics.
  • Up to 20 kW
  • Three-phase or single-phase power supply
  • Integrated network filter
  • Safety function SIL2
  • Torque mode
  • Torque mode
  • Positioning mode

MOTION functions :

  • S-curve
  • Electric shaft
  • Cam profiles
  • Synchronization
  • Camboxes
  • Triggered movements
Communication :
  • EtherCAT
  • CANopen
  • Modbus TCP
iDPL Software Workshop
The iDPL software tool makes it very easy to configure IMD, IMDL and IMDC series drives from a PC using its graphical tool. The path generator and oscilloscope functions ensure fast and optimal implementation.
  • Multi-drives project (1 same project for a set of drives)
  • Multi-windowing
  • Tool Boxes
  • Autotuning
  • Graphical cam profile editor
  • Integrated help
IMDL series
IMDC series
